AICON-BIO® FeiFanT™ Cell Culture Chambers, Wide Mouth Ports

Robot-made cell culture chambers for clinical-grade cell production

AICON-BIO® FeiFanT™ multi-layer cell culture chambers are manufactured on a fully automated line, from GPPS resin to finished, sealed chamber, with no human contact. The result is the three things stem cell and cell therapy manufacturers check first: documented extractables and leachables, endotoxin below 0.001 EU/mL, and insoluble particulates tested on every lot.

Robotic, zero-touch productionE&L study reportEndotoxin < 0.001 EU/mLParticulates on every COAUnique serial number per chamberGamma sterilized, SAL 10⁻⁶

Built for what cell therapy QA asks about

Extractables & leachables

Full E&L study on file

A complete Extractables and Leachables Study report is available to support your material qualification and regulatory filings.

Endotoxin

Endotoxin < 0.001 EU/mL

Every step from GPPS pellet to formed chamber is performed by robots. No operator touches the culture surfaces, so endotoxin is held below 0.001 EU/mL.

Insoluble particulates

Tested and reported per lot

Insoluble particulate testing is a release item on our Certificate of Analysis, so you see the result for the exact lot you receive.

Automated, zero-touch manufacturing

1. ResinGPPS resin pellets fed automatically

2. Molding & surface treatmentTrays formed and treated (Ultra TC or TC) on the automated line

3. Robotic assemblyLayers stacked, sealed and 100% leak tested without manual handling

4. SterilizationGamma irradiated to ISO 11137, SAL 10⁻⁶

Lot-level and unit-level traceability

Every chamber carries a unique traceability code on the first layer, encoding lot number, unit sequence and production time to the minute.
Each code traces back to the process conditions, raw materials and components used for that unit.
Equipment monitoring data is archived for every production run.

Batch production records document every workstation.
Each shipping case is labeled with catalog number, lot number and case number, so every case can be tracked to its destination.
Quality audits available on request; validation binders provided under a signed confidentiality agreement.

Specifications

Formats	1, 2, 4, 5, 10 and 40 trays; 632 cm² per tray, up to 25,280 cm²
Surface treatment	Ultra TC: highly hydrophilic, for demanding adherent cells such as primary cells, MSC, iPSC and serum-free culture. TC: hydrophilic, for general adherent culture
Ports	Wide-mouth ports for direct pouring and harvesting in a biosafety cabinet; compatible with AICON-BIO® filling caps for tubing assembly
Sterility	Gamma irradiated per ISO 11137, SAL 10⁻⁶; single use
Endotoxin	< 0.001 EU/mL
Integrity	100% leak tested; self-venting caps prevent pressure build-up in transit
Handling	Medium and trypsin level out quickly between trays during filling
Documentation	Lot COA (including insoluble particulates), E&L study report, validation binder under CDA

Packaging & shipping

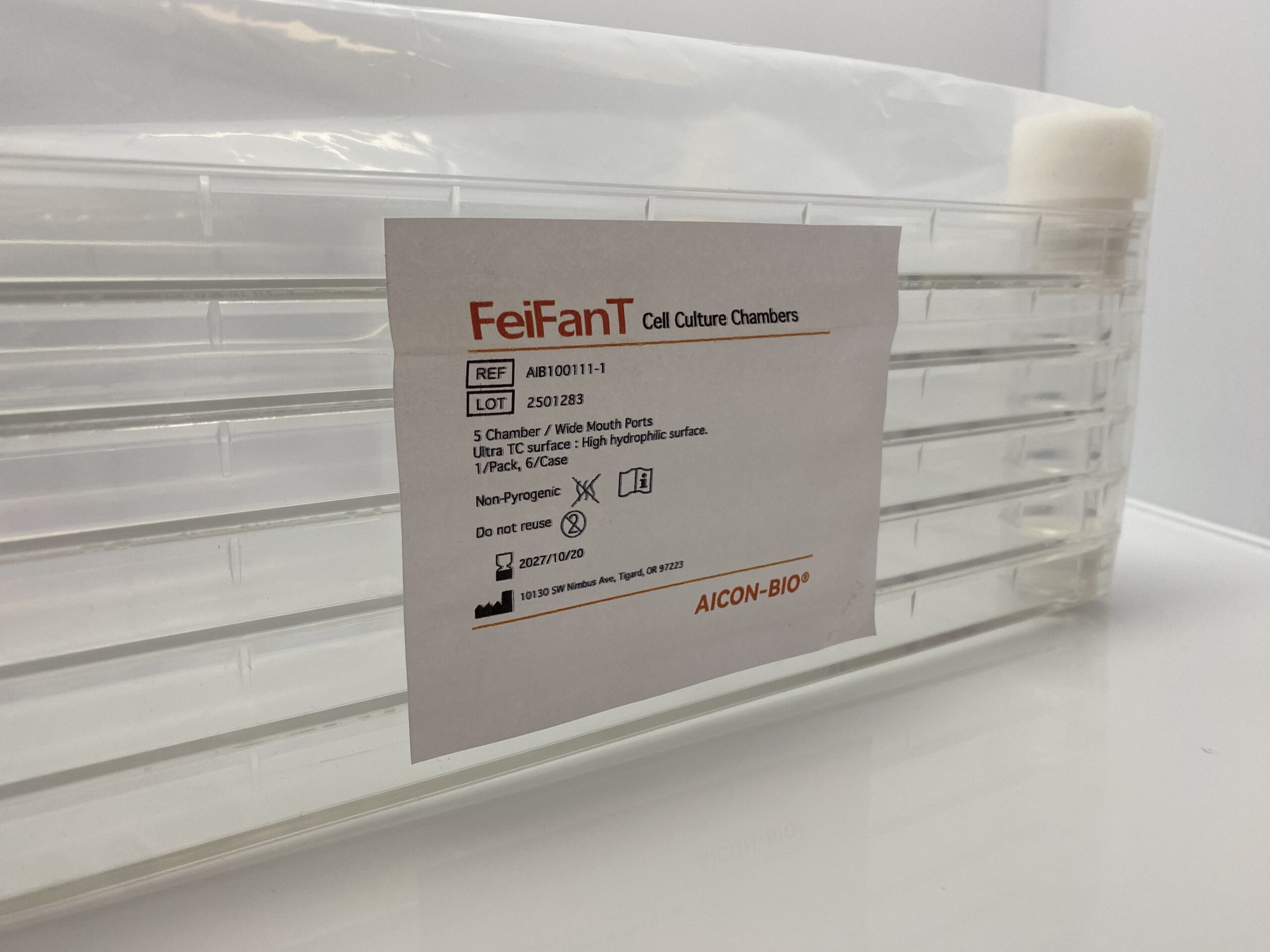

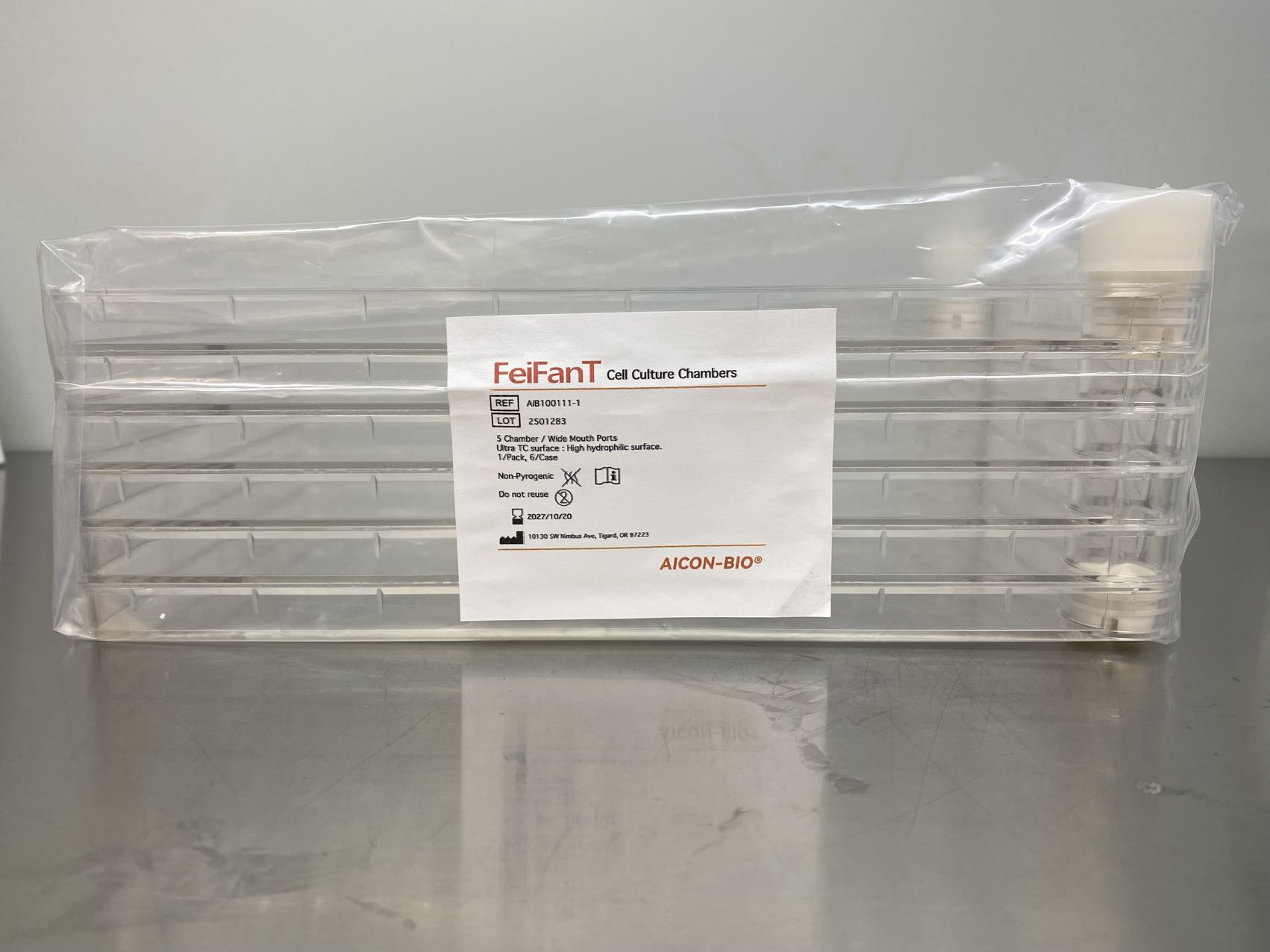

Each chamber is individually bagged and gamma irradiated. Bag labels carry the catalog number, lot number, production, irradiation and expiration dates and a QR code; each shipping case is labeled with catalog number, lot number and case number.

Trays per chamber	Chambers per case · approx. case weight · case dimensions (L × W × H)
1 tray	6 per case · 5.5 kg (12.1 lb) · 42 × 40 × 50 cm
2 trays	6 per case · 6.5 kg (14.3 lb) · 42 × 40 × 50 cm
4 trays	4 per case · 6.8 kg (15.0 lb) · 42 × 40 × 50 cm
5 trays	4 per case · 7.5 kg (16.5 lb) · 42 × 40 × 50 cm
10 trays	6 per case · 20 kg (44.1 lb) · 42 × 55 × 82 cm
40 trays	2 per case · 22 kg (48.5 lb) · 42 × 55 × 82 cm

Ordering information

Cat.No.	No.of Trays	Surface Treatment	Culture Area, c㎡	Units per pack/case
AIB100111	1	ultra TC	632	1/6
AIB100211	2	ultra TC	1264	1/6
AIB100411	4	ultra TC	2528	1/4
AIB100511	5	ultra TC	3160	1/4
AIB101011	10	ultra TC	6320	1/6
AIB104011	40	ultra TC	25280	1/2
AIB1T0111	1	TC	632	1/6
AIB1T0211	2	TC	1264	1/6
AIB1T0411	4	TC	2528	1/4
AIB1T0511	5	TC	3160	1/4
AIB1T1011	10	TC	6320	1/6
AIB1T4011	40	TC	25280	1/2

Qualifying FeiFanT™ for a GMP process? Request the E&L study report, a sample COA or a validation binder: request a quote or contact our team.
